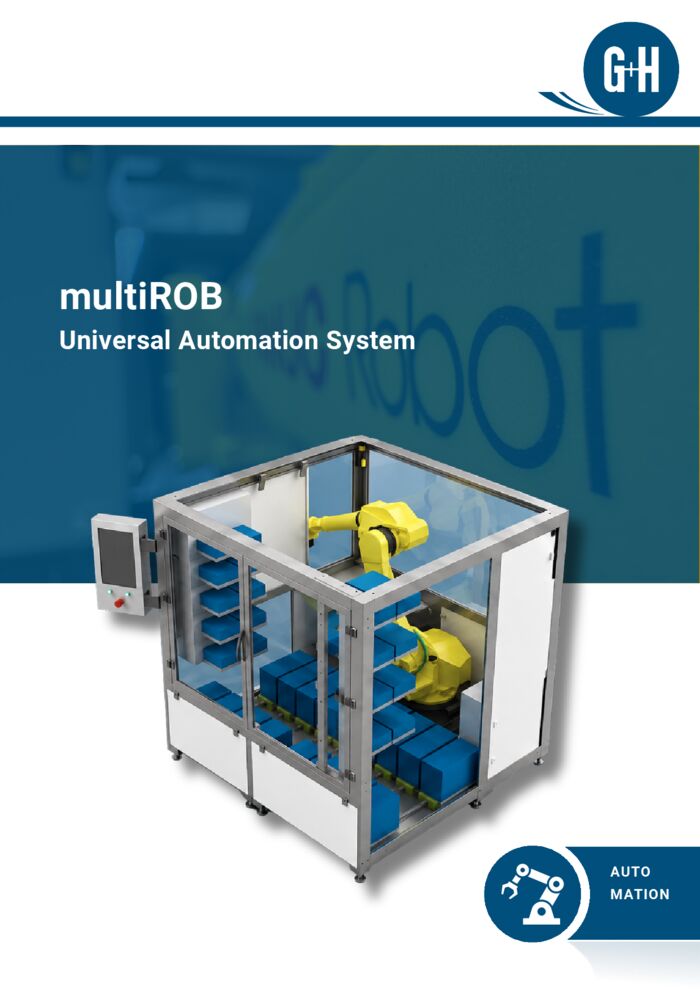

multiROB

The future-proof automation platform for maximum value creation

Higher utilization, less downtime, full flexibility. The multiROB is the strategic solution to rising cost pressures and the shortage of skilled workers. As a self-sufficient, high-performance cell, it optimizes material flow at your machine tools and ensures you maintain a lasting competitive edge.

Compact footprint for efficient integration into existing factory layouts: 4 m² of space required (including peripherals)
High load capacity for reliable handling of heavy workpieces and clamping devices: 70 kg payload
Maximum capacity utilization through parallel feeding to multiple workstations: Loading of up to 3 machines

Plug & Play: Ready for use in your production facility in just a few hours

The multiROB is delivered as a fully self-contained, fully integrated system that requires no additional peripherals. Thanks to its plug-and-play design, commissioning takes only a few hours. If you need to reconfigure your facility, you can easily relocate the cell using a standard pallet jack.
No tedious programming work: Since all handling and storage programs are pre-programmed at the factory, setup requires only a brief re-teaching of the relative motion relative to the machine. In addition, the system is fully logistics-ready and AGV-compatible right out of the box thanks to standardized load carriers.

multiROB Automatisierung mit Doppelbeladung

multiROB Automatisierungszelle mit externem Regal

Maximum autonomy and vendor-neutral flexibility

With up to 40 spacious workpiece stations (400×200 mm) on standardized component carriers, the multiROB enables highly efficient job planning and long, unmanned operating times. First-class industrial components ensure absolute precision, speed, and reliability in continuous operation: A Fanuc M-710𝑖C/70 industrial robot provides a reach of over 1,250 mm. When paired with the universal Schunk Vero-S clamping system, this enables process-reliable clamping with micrometer precision.

Unlimited compatibility: Thanks to the use of a wide variety of communication protocols (Profinet, OPC UA, etc.), the cell is completely vendor-independent. Integration is completely hassle-free even with older PLC-controlled machines via digital I/O.

Intuitive operation via familiar G+H software

Operating the multiROB requires no robot-specific programming knowledge or external specialists. The control system is based entirely on Geibel & Hotz’s proven, intuitive user interface.

Your existing operating personnel can safely control the system after a brief training session. Job planning, part setup, and manual adjustments are performed quickly, through a dialog-guided process, and error-free directly via the integrated touchscreen.

Unbeatable Cost-Effectiveness: Automation That Pays Off Immediately

High-performance automation doesn’t have to be unaffordable for small and medium-sized businesses. The multiROB offers small and medium-sized enterprises (SMEs) in particular the perfect, low-risk entry into Industry 4.0:

Fast ROI: Thanks to an unbeatable five-figure starting price*, the system pays for itself in no time.
Real Capacity Increase: Effortlessly implement an additional, unmanned shift (overnight shift)—highly profitable, even with smaller batch sizes and varying geometries.
Future-proof investment: Thanks to its modular hardware design, the cell can be adapted to the specific loading situation and equipped with a custom storage system. This ensures the system remains fully operational even if the machine tool is replaced in the future, regardless of the machine type.

* Manufacturer’s suggested retail price for the multiROB base configuration, plus application-specific peripherals (such as custom grippers or clamping systems).
